無塵自動循環回收噴砂機系列

◆設備特征 Product features（請往前(qian)瀏覽器(qi)多大(da)量應用(yong)案(an)例相片供(gong)決(jue)定(ding)性）

環保型循環回收式噴砂機它集噴砂、回收、循環、分離、除塵于一體，無污染及砂料四處飛揚現象，是新一代的環保型噴砂設備。是我公司為繁重的噴砂工作設計生產的多用途、大工作半徑、高效率的新型環保噴砂設備。根椐負壓產生裝置不同，分為電動和全氣動兩大種機型。該設備采用壓縮空氣做動力，將磨料高速噴射到工件表面，經過磨料沖擊把工件表面銹污除去，使表面達到一定的清潔度和粗糙度，再通過真空泵（或多級真空發生器）產生的負壓，回收砂料和粉塵，并通過設備的砂塵分離系統將完整的磨料分離繼續循環使用，粉塵與銹污進入集塵桶。在手把開關控制下，設備的噴砂、回砂、砂塵分離、砂料循環、粉塵過濾等所有動作自行完成，工作環境干凈無污染，作業現場達到“GB103328-10333-89”車間管理氣有害氣體爆炸衛生管理規則。砂料、有害氣體爆炸手動的回收利用、離心分離、巡環使用的，運行場地清洗無有害氣體爆炸造成的污染。設施設備壞保制定，有很大的優化了工人們的勞動力的強度和使用壞境要配噴吹閥試驗裝置，可全全手動清理濾蕊浮灰。內置分水過慮器。可對壓解空氣質量進行分批油水分開分開。全全手動裝料，將吸砂頭導入砂料中，啟動的重力作用泵系統性將全全手動裝料。PLC可源程序調控（標配），料位報警模塊模塊(選裝)。包括調壓旋扭、除塵器原理圖標。固定的氣控設備與爐料閥。操作弧長20-70米，面操作檔次達Sa2.5-3級。安裝安全性高防水涂料電原插板插口，更簡單有利快捷操作的的。安裝的調節電原航空運輸插板插口更簡單有利快捷操作的的。特點美觀性的防火的調節表面面板與自動調節箱。保障與檢查維修很大更簡單有利快捷。車式腔體結構設計，防潮防火，電信更簡單有利快捷。腔體門框通過有利快捷門瑣相連接，拆換更簡單有利快捷。把手觸點開關的調節（自動調節DC24V）。一機三用，兼具開放性式、化學工業吸砂器、環保節能型五種設施設備的職能。噴砂服務器運用特俗把控二次回路，的工作負荷在0.2Kpa-0.8Kpa比率內容易上下調整，可需要滿足有所不同鋼件的噴砂藝規定要求。安全使用比率：除銹設備、除水性油漆、焊接件處   ; 理（涉及到304不繡鋼焊接件極其附過的去黑、去焊渣加工治療）去刀痕、飛邊、防氧化皮、304不繡鋼，鋁門窗面的幽雅型亞光加工治療（耐污性很好、可掩蓋割傷）、去水泥水泥地面土、石雕面污圬等加工治療。

Features: Environmental protection cycle recovery type sandblasting machine sets of sandblasting, recycling, circulation, separation, dust removal in a body, no pollution and sand material flying around phenomenon, is a new generation of environmental protection sandblasting equipment. The machine is our company for heavy gush arenaceous job design of multi-purpose, the great work radius, high efficiency of the new environmental protection sandblasting equipment. Root tree produced negative pressure, divided into different device and electric pneumatic two types of all. The equipment adopts compressed air do motive force, abrasive high-speed spray into the surface of workpiece, through the surface of workpiece abrasive impact and remove rust surface, it reaches a certain cleanness and roughness, again through the vacuum pump (or multi-stage vacuum generator) creates negative pressure, recycling waste materials and dust, sand and through the equipment of dust separation system will complete abrasive separation recycling, and continue to dust pollution into the dust collection barrel rust. In hand the switch control, equipment of sandblasting, back to the sand, sand dust separation, sand material circulation, dust filter to complete all action, working environment clean no pollution, work safety to "GB103328-10333 89" workshop air dust health standard. The waste materials, dust the automatic recovery, separation and recycling, the work site clean and free of dust pollution. Environmental protection equipment design, has greatly improved the labor intensity and work environment with blower, can automatically remove dust filter. Built-in water filter. May to the compressed air in secondary water-oil separation. Automatic feeding, will suck sand head into the waste materials, vacuum pump system will start in the automatic feeding. PLC programmable control (optional), material place alarm function (optional). With pressure regulating knobs, counter blowing button. Steady air control device and abrasive valve. Work 20-70 meters radius, surface treatment level of Sa2.5-3 grade. With safety waterproof power socket plug, convenient operation. Configuration control power plug sockets aviation easy operation. Unique beautiful dustproof control panel and the electric. Maintenance and overhaul special convenient. The car type structure, rain dustproof, convenient to move. The cabinet door plank fast door, more convenient to assemble and disassemble zoar connection. The switch control (hand electric control DC24V). One machine with three, with open, industrial suck sand device, environmental protection function of three equipment. Gush arenaceous host machine adopts special control circuit, working pressure in 0.2-0.8 range Kpa Kpa arbitrarily regulate, and can satisfy different requirements of sandblasting process workpiece. Use scope: derusting, except for paint, weld processing (including stainless steel weld and its surrounding the to black, welding slag processing) to deburr, flash, stainless steel, aluminum oxide skin, the elegant type inferior smooth surface treatment (to bear or endure corrupt the gender is good, can cover scratch), to concrete, stone carving surface dirt processing.

◆包括技木技術指標 Main technical parameters

機形號 Model	STR-B型無塵自動循環回收式噴砂機
上班開關(guan)電源 Work power	380V 50HZ
氣(qi)體重壓(ya) Air pressure	5-7kg/cm2
耗(hao)氣量 Gas consumption	3m3/min
三相電機輸出 Motor power	4kw
業務成功率 Work efficiency	6-10m2
上班(ban)回轉(zhuan)半(ban)徑 Work radius	10m 可給出所(suo)需改(gai)長，到底聯系微信客服
工做結(jie)構類型(xing) Work form	智能配置收購(gou) Automatic cycle recovery
除去(qu)等級(ji) Clean level	Sa2-3
光滑度 Roughness	60μm以內
總重量 Weight	260kg
外觀(guan)簡(jian)約時尚寬度 Shape dimension	1380×830×1700mm
砂(sha)料規(gui)格為 Sand material specifications	20-100#大于（1.0mm-0.04mm）

◆適用于超范圍 Applicable scope

1.環保(bao)型標準要求(qiu)高且無(wu)某(mou)些(xie)除塵儀(yi)器(qi)儀(yi)器(qi)的在日(ri)常生活中；

2.處置會員等級較(jiao)高(gao)。

1. High environmental protection requirement and without any dust removal equipment occasion;

2. Higher processing level.

運行比率：除銹處理、除漆面焊接清理去毛刺現象、飛邊、陽極氧化皮不銹鋼裝飾管嗎、型材接觸面的典雅型亞光處里（耐污(wu)性不錯、可掩蓋(gai)刮痕(hen)）去瀝(li)青c30混凝土土、石(shi)雕表明污(wu)圬等處里。

（重要文件可(ke)考生A型或(huo)撥(bo)打電話(hua)我總部）

Applicable scope: derusting, clean paint processing to weld burr, flash, stainless steel, aluminum oxide skin surface elegant type to bear or endure corrupt processing (matt better properties, can cover scratch) to concrete, stone carving surface dirt processing. (specific information can be A reference type or call our company)

◆ 廠品特(te)性 Product features

此噴砂機戶外工作噴砂無粉塵污染，自動循環回收的環保型設備，我公司研發的C型無塵噴砂機屬于環保型無粉塵噴砂處理機，此機體積已縮短，目標只是不(bu)(bu)便(bian)在戶外建筑施工運動不(bu)(bu)便(bian)，大(da)好大(da)大(da)大(da)減少了(le)勞功難度，還(huan)有加工熱效率在全球相同型軟件靈活；贏得廣闊客服的共同認證，并就已經贏得了(le)多方面的活動推(tui)廣和選用(yong)！（主要信息(xi)可參照A型或(huo)垂詢我子公司）

features: this machine introduces advanced foreign technology research and development of outdoor work gush arenaceous no dust pollution, automatic cycle recovery of environmental protection equipment. Our company’s C type clean sandblasting machine belong to the most advanced domestic environmental protection no dust gush arenaceous processor, the machine has to minimize, volume compression purpose is convenient outdoor construction convenient to move, greatly reduce the labor intensity, and processing efficiency in domestic products with type fastest; Our customers get a consensus, and has been widely promotion and use! (specific information can be A reference type or call our company)

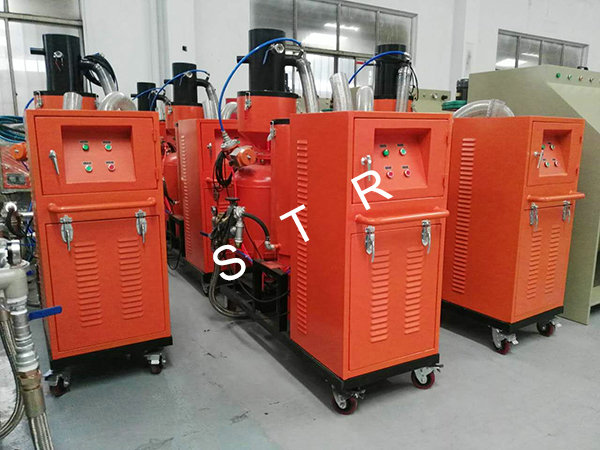

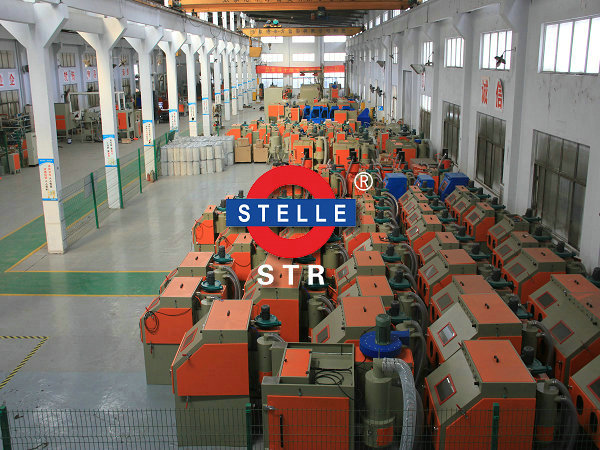

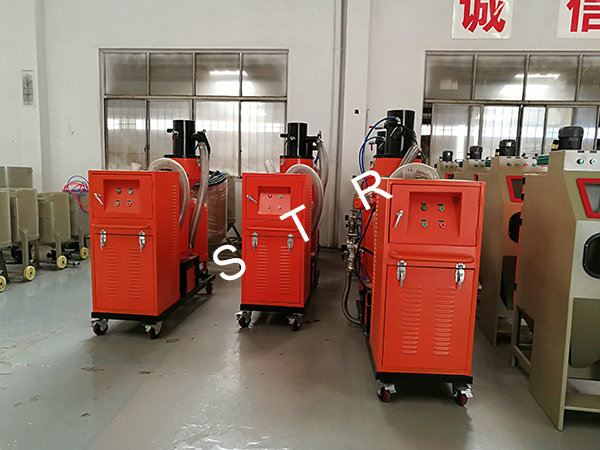

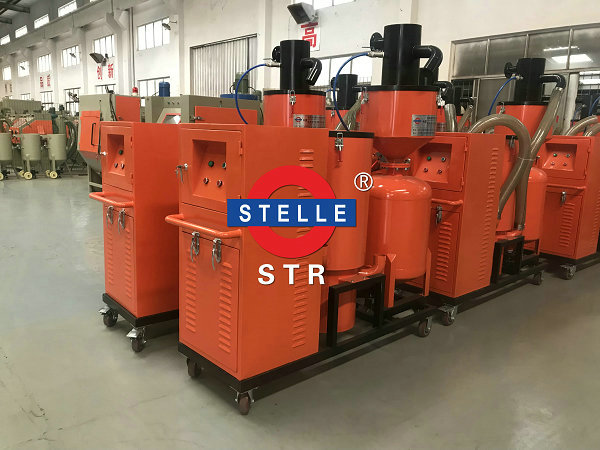

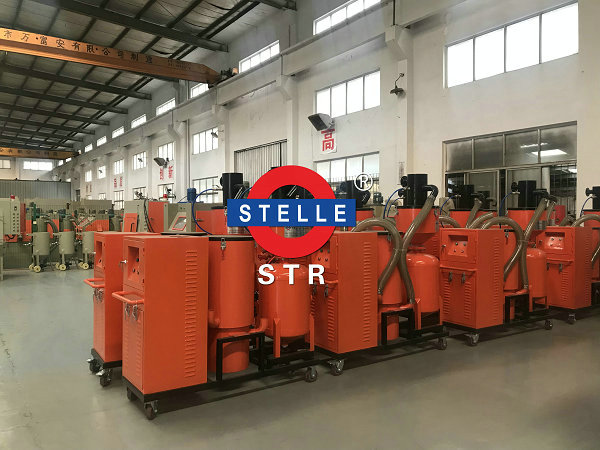

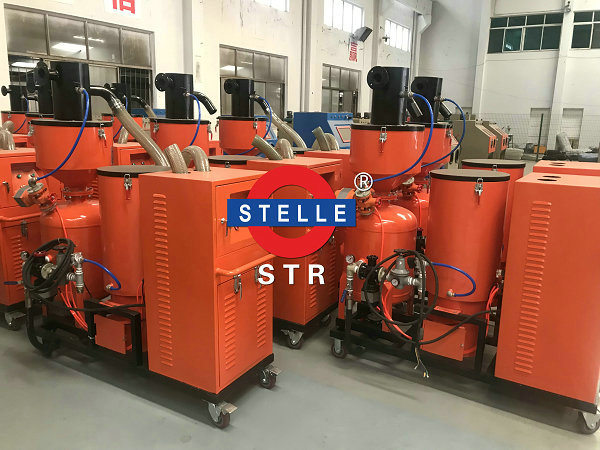

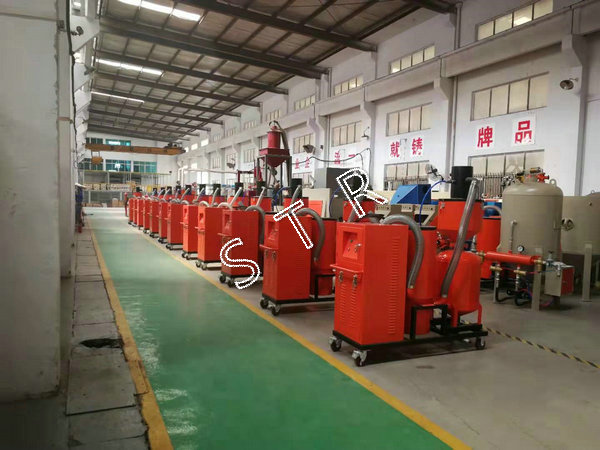

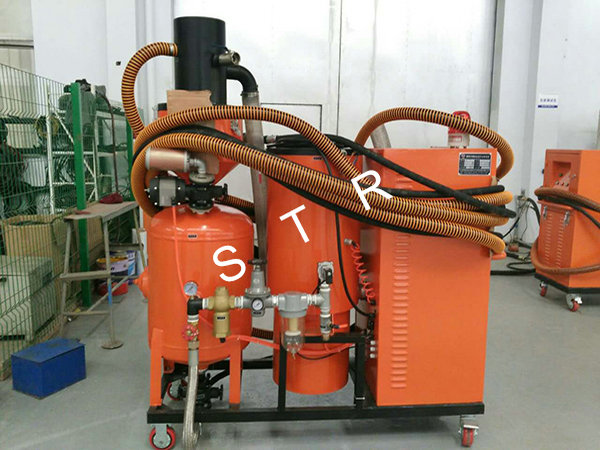

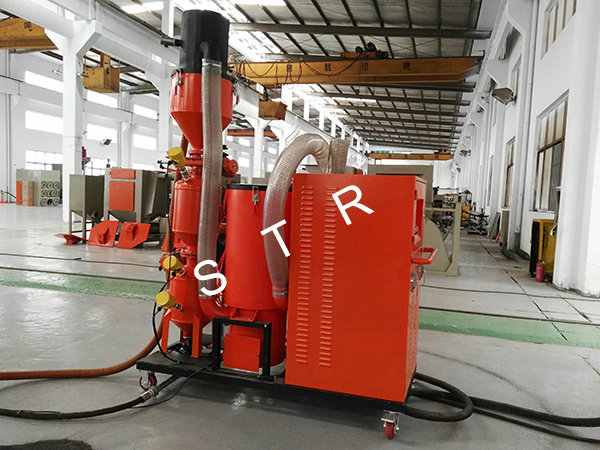

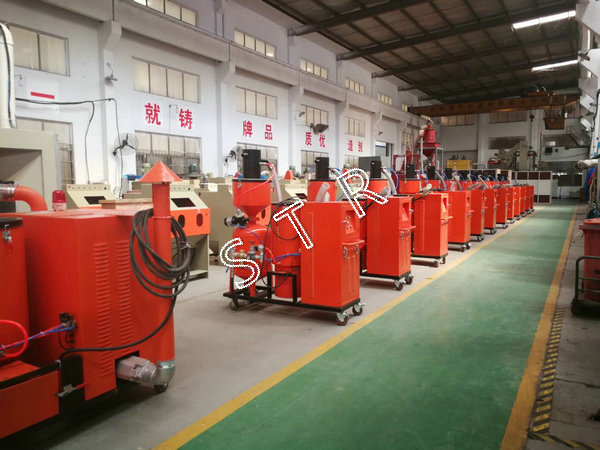

部份無塵自動循環環保型噴砂機案例:
